8 -kanals digital podcast -mikser med fire mikrofoninnganger, 5" FX berøringspanel, med inkludert redigeringsprogramvare.
Tascam Mixcast 4 gjør det enkelt å lage profesjonelt innhold. For podcastproduksjoner, livestreaming, eller voice over. Mixcast 4 kan mikse og spille inn mikrofoninnganger med intern bakgrunnsmusikk, effektlyder og jingler via pads og ekstern lydinngang fra telefonen, PCen eller Bluetooth -enheter. Sammen med Tascam Podcast Editor-programvaren får du en komplett pakke inkludert bølgeformredigering og flersporet opptak for alle arbeidstrinn fra pre-produksjon til ferdigstillelse.
Utstyrt med fire mikrofoninnganger og fire individuelle hodetelefonutganger, er Mixcast 4 alltid klar for podcastproduksjon uten kompliserte innstillinger. Den gir all lydrelatert drift og arbeidsflyt som trengs for live-streaming, arrangementer, podcaster og andre applikasjoner. Den automatiske miksingsfunksjonen kan for eksempel automatisk justere optimale nivåer og angi mikrofonprioritet for en perfekt miks. Takket være den 5-tommers berøringsskjermen i farger, får du intuitivt tilgang til den godt strukturerte menyen og foreta de ønskede innstillingene med bare noen få enkle trinn.
En komplett arbeidsstasjon med alle funksjonene du trenger. Fra lydopptak til miksing av innspilt lyd, Mixcast 4 tilbyr et komplett produksjonsmiljø med flere praktiske funksjoner, for eksempel 14-spors opptak direkte til enhetens SD-kort, Bluetooth-lydinngang, en Aux-inngangskontakt for enkelt å blande og ta opp telefonsamtaler (med mix-minus) eller andre lydkilder, og USB-tilkobling som gjør at enheten kan legge til lyder fra en datamaskin. Du kan også benytte Mixcast 4 som et 14-in/2-out USB-lydgrensesnitt med din favoritt DAW-programvare.
Features:
- Production of podcasts with up to four people: 4 mic inputs with auto-mix, 4 headphones outputs

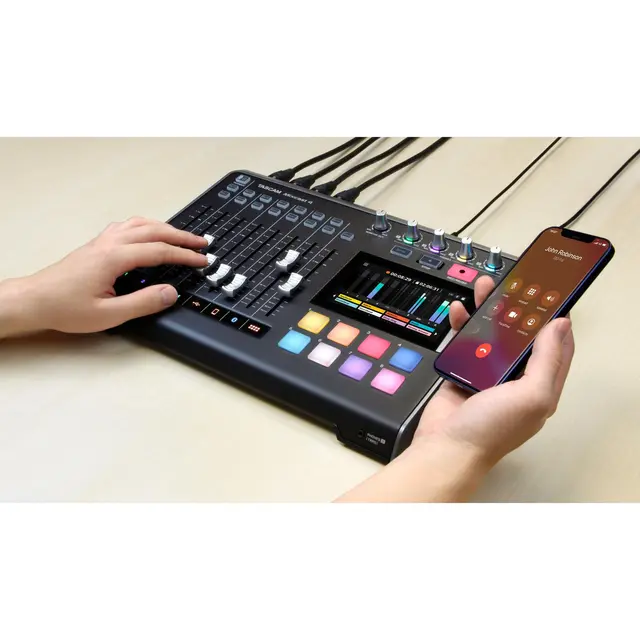

- Invite guests and friends: Mix-Minus to include call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
- Sound pads for instant sound triggering and effects
- Easy and intuitive control using a 5-inch touchscreen
- Fully compatible with the dedicated Tascam Podcast Editor software to cover the entire production workflow
- Records up to 14 tracks directly to an SD card (12 channels + stereo mix)
- Built-in USB audio interface with 14 inputs and two outputs
- Nine language options including English, French, German, Italian, Spanish, Russian, Chinese, Japanese and Korean
Hardware:
- Four mic inputs over balanced XLR/TRS combo jacks
- Four headphones outputs with independent volume controls
- Headset input/output via 3.5-mm TRRS mini-jack (mirrors the output of headphones output 1)
- Stereo line input, selectable between dual balanced TRS jacks and a 3.5-mm TRRS jack
- Balanced monitor outputs via dual TRS jacks
- Stereo line output via 3.5-mm stereo mini-jack

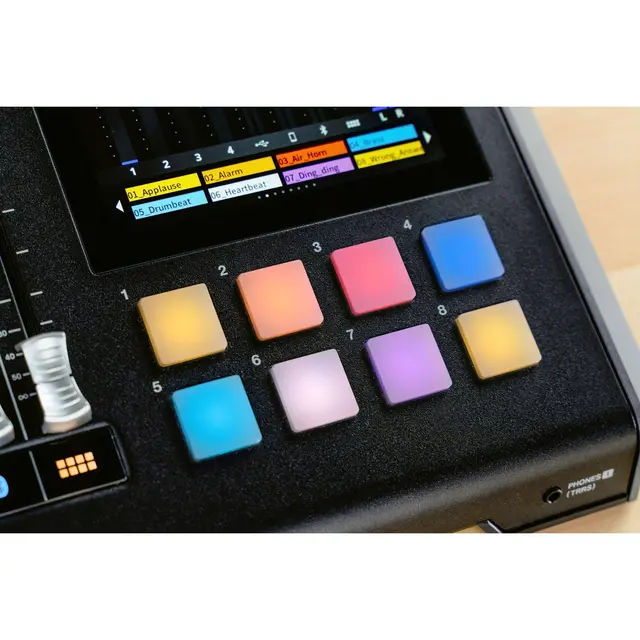

- Eight Sound Pad buttons
- Use these to instantly play effect sounds, jingles, background music or other audio material
- Eight sound banks available for up to 64 sounds in total
- Quickly switch between the eight sound banks via the touchscreen
- One bank of sounds included (can be set with Podcast Editor)
- Eight large channel faders to mix the levels of
- four mic signals
- one stereo signal via USB
- one stereo signal from a mobile device
- one stereo signal via Bluetooth
- the Sound Pad sounds
- Mute and Solo buttons on each channel (sound pad channel: Solo only)
- Talkback button for announcements to the podcast participants
- Mark button to set marks for specific events or phases of the podcast during recording
Supported Operating Systems:
Windows
- Windows 10 (May 2021, version 21H1)
Mac
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
iOS
- iOS 14 / iPadOS 14
- iOS 13 / iPadOS 13
Specifications:
| Recorder specifications |
|
| Recording media |
SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB) |
| Recording/playback formats |
|
| WAV(BWF) |
48 kHz, 24 bit, 2 ch Stereo/14 ch Poly |
| Max. recordable tracks |
14 tracks (12 track + 2 mix) |
| Analog audio input ratings |
|
| MIC INPUT jacks (1-4) |
|
| Connectors |
XLR/TRS combo jacks |
| XLR |
XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| TRS |
6.3mm (1/4?) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level |
+10 dBu (when LEVEL at min.) |
| Nominal input level |
-10 dBu (when LEVEL at min.) |
| Minimum input level |
-76.5 dBu (when LEVEL at max.) |
| Gain range |
66.5 dB |
| Input impedance |
2.1 kO |
| PHONES (TRRS) 1 jack (CTIA standard) |
|
| Connector |
3.5 mm (1/8?) 4-pole mini jack |
| Maximum input level |
+4 dBV (when LEVEL at min.) |
| Nominal input level |
-16 dBV (when LEVEL at min.) |
| Minimum input level |
-82.5 dBV (when LEVEL at max.) |
| Gain range |
66.5 dB |
| Input impedance |
2 kO |
| LINE IN (TRRS) jack (CTIA standard) |
|
| Connector |
3.5 mm (1/8?) 4-pole mini jack |
| Maximum input level |
+8 dBV |
| Nominal input level |
-12 dBV |
| Input impedance |
12 kO |
| LINE IN L/R (balanced) jacks |
|
| Connectors |
6.3mm (1/4?) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level |
+24 dBu |
| Nominal input level |
+4 dBu |
| Input impedance |
11 kO |
| Analog audio output ratings |
|
| PHONES jacks (1-4) |
|
| Connectors |
6.3mm (1/4?) standard stereo jacks |
| Maximum output |
45 mW + 45 mW (0.1% THD+N or less, into 32O load) |
| PHONES (TRRS) 1 jack (CTIA standard) |
|
| Connector |
3.5 mm (1/8?) 4-pole mini jack
PHONES (TRRS) 1 output splits from PHONES 1 output |
| LINE OUT (TRRS) jack (CTIA standard) |
|
| Connector |
3.5 mm (1/8?) 4-pole mini jack |
| Maximum output level |
-25 dBu |
| Nominal output level |
-45 dBu |
| Output impedance |
100 O |
| MONITOR OUT L/R (balanced) jacks |
|
| Connectors |
6.3mm (1/4?) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum output level |
+20 dBu |
| Nominal output level |
+0 dBu |
| Output impedance |
200 O |
| LINE OUT jack |
|
| Connector |
3.5mm (1/8?) stereo mini jack |
| Maximum output level |
+6 dBv |
| Nominal output level |
-14 dBv |
| Output impedance |
200 O |
| Control input/output |
|
| USB port |
|
| Connector |
USB Type-C |
| Formats |
USB2.0 HIGH SPEED
USB AUDIO CLASS 2.0
USB MASS STORAGE CLASS |
| Bluetooth® |
|
| Output class |
2 (about 10m* unobstructed transmission distance) |
| Supported profile |
A2DP |
| Supported A2DP codecs |
SBC, AAC |
| Supported A2DP content protection |
SCMS-T |
| Recording times (in hours: minutes) |
Recording format: 24-bit / 48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards. |
| Power |
Dedicated AC adapter (PS-P1220E NUT), DC 12 V |
| Power consumption |
12.5 W (maximum) |
| Weight |
2.55 kg |
| Operating temperature range |
0 – 40°C |
| Dimensions |
374.8(W) × 56.5(H) × 263.6(D) mm (excluding protrusions)
374.8(W) × 71.2(H) × 266.7(D) mm (including protrusions) |
| Include items |
AC adapter (PS-1220E NUT), USB Type-C to Type-C cable, Owner’s manual (inc. warranty) |
* The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.
Audio Performance
| Mic amp EIN (equivalent input noise) |
-125 dBu or less (150O termination, LEVEL at max.) |
| Frequency response |
Mic input jacks (1-4)
20 Hz – 20 kHz: +0.3 dB / -0.3 dB (JEITA) |
| S/N ratio |
101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight) |
| Distortion |
0.003%
( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF) |
| Crosstalk |
95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B. |
