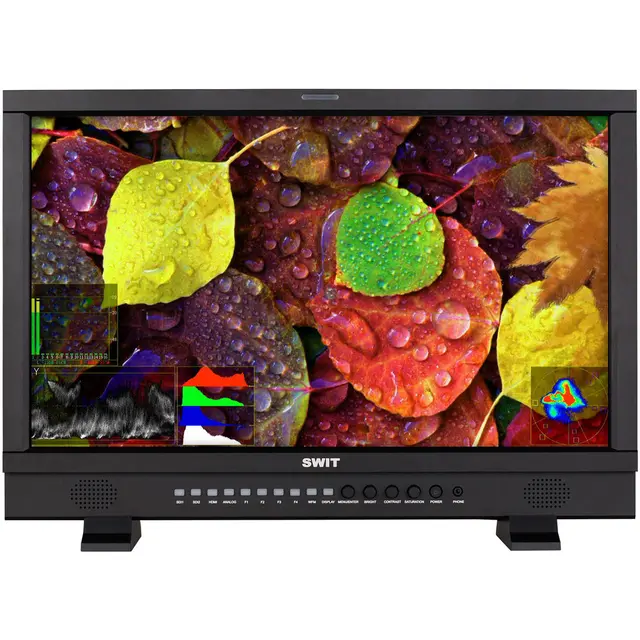

SWIT S-1243FS Waveform Studio LCD-skjerm fra SWIT har et 23,8” LCD-panel for å produsere 3G/SDI/HDMI-video i Full HD 1920 x 1080 oppløsning. Den gir en 1000:1 kontrast for nøyaktig fargegjengivelse og leveres med en V-Mount batteriplate. Med fire hjørner og en stor senterposisjon, gir skjermen justert gjennomsiktighet for bølgeform og vektorkopi/histogram.

Specifications:
Signal System NTSC/PAL
Monitor Type LCD
Screen Size 23.8" (60.5 cm)
Resolution 1920 x 1080
Display Area 19 x 11" (53 x 30 cm)
Display Colors 16.77 million colors
Aspect Ratio 16:9 / 4:3
Viewing Angle H/V: 178°/ 178°
Brightness 300 cd/m2
Contrast Ratio 1000:1

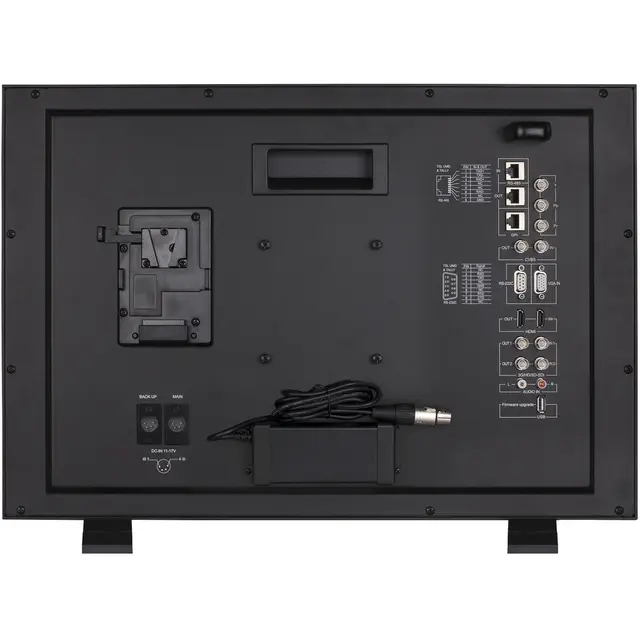

Inputs BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input
1 x HDMI
RS-485: 1 x GPI, 1 x UMD
1 x USB
1 x VGA
1 x RS-232C (UMD)
RCA: 2 x L/R audio input
Output BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output
1 x HDMI loop output
1 x RS-485 (UMD)
1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output

23.8” LCD panel
• 1920 x 1080 resolution
• 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• Chart positioning / Translucence adjustment
• Four corners and large center, with adjusted translucence for waveform and vectorscope/histogram
• 16-channel embedded audio meters with alert
• SDI: 16-channel / HDMI: 8-channel
• 2 selectable audio channels to output
• Peaking focus assist (red/blue switch)
• Active Format Description (AFD)
• Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False color with color chart
• R/G/B/mono color modes
• Over exposure zebra stripes
• Internal color bar
• V-Mount battery plate optional
• USB firmware upgrade

Video Formats
SDI:
SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50)
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)

HDMI:
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576p / 576i / 480p / 480i

Y/Pb/Pr:
1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i

VGA:
1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480

Temperature Working: 32 to 104°F (0 to +40°C)
Storage: 5 to 140°F (-15 to +60°C)
Humidity 10 to 90%
Power Requirements 100 to 240 VAC, 11 to 17 VDC
Power Consumption =36 W
Dimensions 23 x 15 x 3.4" (58 x 38 x 8.7 cm)
Weight 16 lb (7.2 kg)

In the Box

• SWIT S-1243F Waveform Studio LCD Monitor (23.8", V-Mount)
• V-Mount Battery Plate
