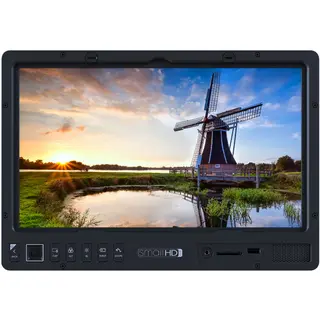

SmallHD 1303 HDR 13 "Produksjonsmonitor. Med HDR visning støttet av en 10-biters Color Intelligence-motor med kalibreringsfunksjoner, kan 1303 vise et stort lysstyrkeområde, som inkluderer loggformater og andre bildestiler med utvidet rekkevidde. 1500 cd / m², dagslys, 1920x1080 skjermpanel i full HD-oppløsning kan drives av en av to SDI-innganger eller en HDMI-inngang. Hver inngang har en loop for tilkobling av annet utstyr uten behov for splitter. Alle funksjonene til denne skjermen er tilgang til via det innovative Page Builder OS. Ved å implementere full aluminiumskonstruksjon og tilbudet om separat tilgjengelige brukerutskiftbare skjermbeskyttere av polykarbonat, bygde SmallHD denne monitoren for å overleve produktionssterkhet i studioer og i felt.

Panel Type IPS
Screen Size 13" / 33 cm
Resolution 1920 x 1080
Pixel Density 170 PPI
Aspect Ratio 16:9
Active Area 11.59 x 6.52
Brightness 1500 cd/m²
Contrast Ratio 1140:1
Color Gamut 100% REC709
Bit Depth 10-bit
Viewing Angle 178°
Backlight Type LED (adjustable)
Technical
Video I/O Inputs
2 x SDI
1 x HDMI

Outputs
2 x SDI
1 x HDMI
Input Formats SDI: 8-bit YCC 4:2:2
1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
720p23.98/24/25/29.97/30/50/59.94/60

HDMI: 8-bit YCC 4:2:2, 8/10/12-bit RGB and YCC 4:4:4
1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
720p23.98/24/25/29.97/30/50/59.94/60
576p50 (high-speed 576p100)
480p59.94/60 (high-speed 480p119.88/120)

Audio: HDMI and SDI embedded
Output Formats SDI: 8-bit YCC 4:2:2
1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
720p23.98/24/25/29.97/30/50/59.94/60

HDMI: 8-bit YCC 4:2:2, 8-bit RGB and YCC 4:4:4
1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
720p23.98/24/25/29.97/30/50/59.94/60
576p50 (high-speed 576p100)
480p59.94/60 (high-speed 480p119.88/120)
General
Data I/O 1 x SD card slot for LUTs, captured images, firmware updates
Power Inputs
1 x IEC AC input
1 x 4-pin XLR

Outputs
1 x 12 VDC LEMO
3 x USB (0.5 A max output)

Weight 3.6 kg

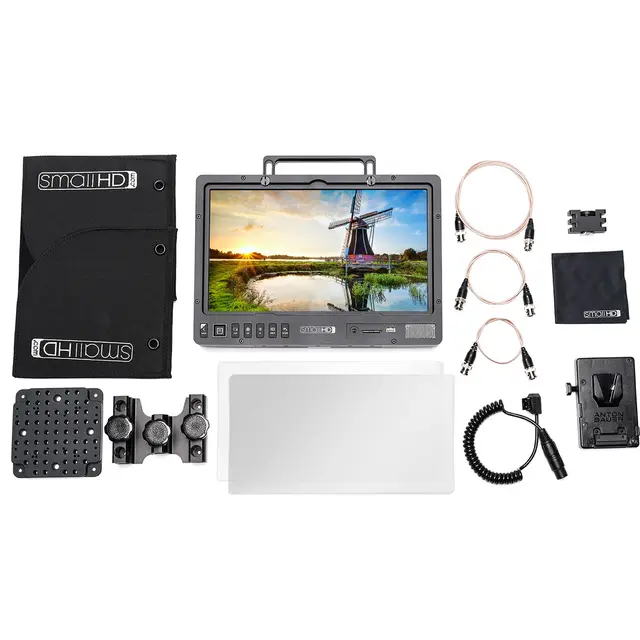

In the box:

SmallHD 1303 HDR 13" Production Monitor
SmallHD HDMI Cable (6')
AC Power Cord
SmallHD Thin BNC Cable (12")
SmallHD Thin BNC Cable (24")
SmallHD Thin BNC Cable (48")
SmallHD RapidRail Mount for 1/4"-20 Accessories
SmallHD Screen Impact Protector for 1300 Series Monitors
SmallHD Three-Sided Sun Hood for 1300 Series Monitors
SmallHD C-Stand Mount for 1300 Series Monitors
SmallHD V-Mount Power Kit + Cheese Plate
SmallHD V-Mount Power Kit
SmallHD Pro Battery Cheese Plate
SmallHD Matte Screen Protector for 1300 Series Monitor
