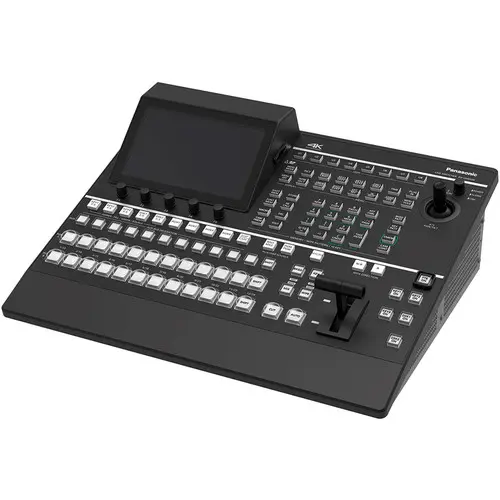

The 12G-SDI compatible Live Switcher AV-UHS500 contains
most basic functions of high-end large models and is capable of 4K video
production with the same operability as HD. Its integrated body is incredibly
portable, making it ideal for music, sports, entertainment and other live
events. In addition to 4K/3G/HD multi format support, installing additional
optional units enables expansion to up to 16 SDI inputs to enable smooth
operation at events with many cameras.
- 4K live production video switcher
- 12G-SDI compatible
- 4K/3G/HD multi-format support with up/down, HDR/SDR and ITU-R BT.2020/BT.709 conversion functions
- Equipped with 5 keyers, including 2 channels of chroma-key and 2 channels of PinP
- 5 optional boards available for customisation and system flexibility
Keyers enable a variety of program performance,
so the unit has been equipped with five, including a 2ch of chroma-key and 2ch
of PinP. The switcher is also equipped with an up/down conversion function,
HDR/SDR conversion function and ITU-R BT.2020/BT.709 conversion function. These
enable the flexibility to select video output as needed in environments where
there are a variety of formats being used. The 4K Live Switcher is easy to use
in a variety of applications, such as event staging, broadcast at stations and
OB vans, lectures at universities, conference halls and so on, demonstrating
incredible performance in live video production on the field. A new
12G-SDI compatible compact 4K Live Switcher, the AV-UHS500, will also be on
display at IBC 2019. The 4K Live Switcher demonstrates outstanding live video
production performance in the field for use in a variety of applications, such
as event staging, broadcast at stations and OB vans, lectures at universities
and conference halls.
Five optional boards have also been developed to meet customer needs. For
improved flexibility and usability, additional optional boards can be freely
installed to increase the number of inputs to as many as 16 SDI or 8 HDMI,
ensuring smooth operation at big events with a large number of cameras. The
unit is equipped with 5 keyers, including 2ch of chroma-key and 2ch of PinP, to
enable a variety of production effects. The switcher is also equipped with an
up/down conversion function, HDR/SDR conversion function and ITU-R
BT.2020/BT.709 conversion function. These enable the flexibility to select
video output as needed in environments where there are a variety of formats
being used.
Commpatible formats:
- 3840 x 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p
- 1080/59.94p, 50p, 29.97Psf, 25Psf, 24Psf, 23.98Psf, 59.94i, 50i
- 720/59.94p, 50p
