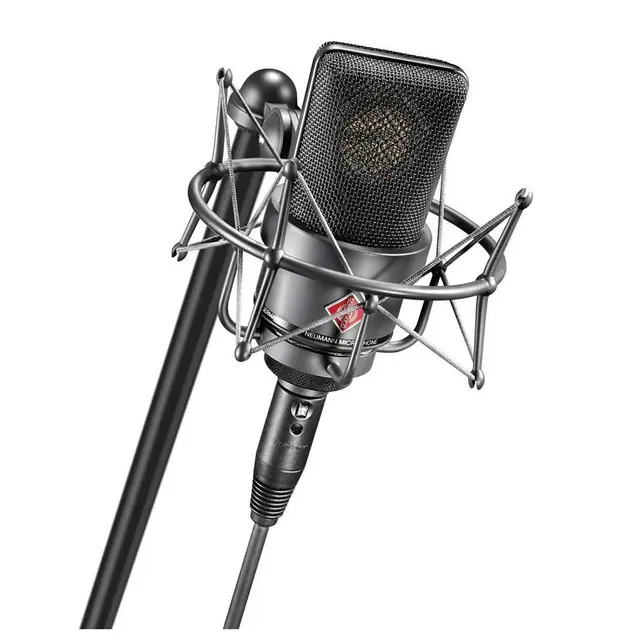

Neumann TLM 103 MT Studio Set - Black
A Modern Classic
The TLM 103 has quickly become one of the biggest successes in Neumann’s history. Its pristine, clear sound is a modern update on the classic U87. The TLM 103 is a transformerless cardioid condenser microphone with a gentle presence boost for a stunningly direct sound with breathtaking definition and ultra low noise.
The New Standard
Introduced in 1997 as an affordable alternative to the venerable U 87, the TLM 103 has since become a modern classic in its own right. Today, the TLM 103 defines the standard by which contemporary studio microphones are measured. Its classic tapered headgrille design gives the TLM 103 a distinct Neumann look.
The TLM 103 is a cardioid microphone with a large diaphragm condenser capsule derived from the classic K67/87 capsule of the legendary Neumann U 87. However, the TLM 103 has a slightly more modern voicing with a wide presence boost for frequencies above 5 kHz....
In the box:
1x TLM 103 mt Microphone
1x EA 1 mt Shock Mount
| Acoustical operating principle | Pressure gradient transducer |
| Directional Pattern | Cardioid |
| Frequency Range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 23 mV/Pa = –32.5 dBV ± 1 dB |
| Rated Impedance | 50 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR 1 | 17.5 dB |
| Equivalent noise level, A-weighted 2 | 7 dB-A |
| Maximum SPL for THD 0.5% 3 | 138 dB |
| Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4 | 76.5 dB |
| Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5 | 87 dB |
| Maximum output voltage | 13 dBu |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 3 mA |
| Matching connector | XLR 3 F |
| Weight | approx. 450 g |
| Diameter | 60 mm |
| Length | 132 mm |
