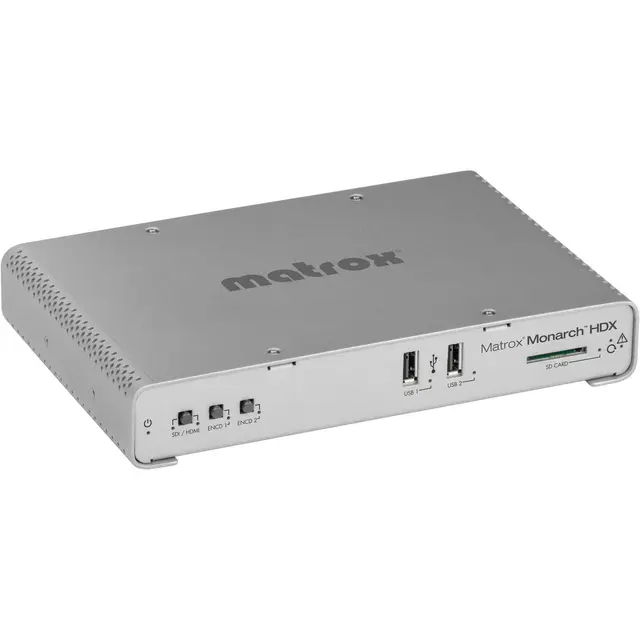

Strøm og spill inn video fra SDI- og HDMI-kilder samtidig med Matrox Monarch HDX. Monarch HDX utvides på Monarch HD og legger SDI I / O til den allerede tilgjengelige HDMI I / O- og dobbeltkanal-operasjonen med uavhengige H.264-kodere. Denne funksjonaliteten gjør den egnet for kringkasting og andre profesjonelle arbeidsflyter som krever strømming og innspilling av innhold.

Å ha diskrete kodere gjør det mulig for hver kanal å fungere separat. Du kan streame til to forskjellige lokasjoner, registrere proxy- og masterfiler fra samme inngang og registrere to innganger samtidig. Du kan også bruke den ene koderen for å streame video live, mens den andre koderen tar opp en kopi av sendingen av høy kvalitet for avspilling etter live-strømmen. Enten du bruker den til direkteavspilling eller innspilling, kan Monarch HDX integreres i SD- eller HD-produksjoner.

HDMI Video Input 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i 29.97/25
1280 x 720p 60/59.94/50
HDMI Video Output Preview output of video input signal
2-frame delay from input to output
SD video output as windowed in an HD output

SDI Video Input 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080PsF 29.97/25
1920 x 1080i 29.97/25
1280 x 720p 60/59.94/50
720 x 576i 25
720 x 486i 29.97

SDI Video Output Clean distribution of SDI incoming signal
0-frame latency passthrough of Input signal
Hardware bypass relay present in SDI signal path is "closed" on power failure
Audio Input Processes first two channels of audio embedded in HDMI or SDI input signals
Unbalanced analog stereo input via 1/8" jack (3.5 mm)
Line level
Audio Output Pass-through of 8 embedded audio channels in HDMI and SDI signals
Unbalanced analog stereo output via 1/8" jack (3.5 mm), pass-through of input Line level
Frame Synchronization On both HDMI and SDI inputs.
Video Encoder Built-in H.264/MPEG-4 Part 10 (AVC)
Resolutions Selectable encoding resolutions:
128 x 128 to 1920 x 1080
Video Bit Rates Single Encoder:
Streaming mode - 20 Mbps
Recording mode - 30 Mbps

Dual Encoder:
Maximum 10 Mbps for streaming channels
Maximum 30 Mbps combining both channels
Encode Frame Rates Encode frame rates (fps): 60/50, 30/25/24, 15/12.5

Note: The maximum encoded frame rate is 30 fps when input resolution is 1920 x 1080
Encoding Profiles Baseline, Main, and High
Encoding Controls 2.0, 3.0, 3.1, 4.0, 4.1 level support
IBP GOP size and structure
Variable bit rate support
Average min/max data rate controls
De-blocking filter
Audio Encoder MPEG-4 AAC
Audio Encoding Standard: AAC-LC
Sample Frequency 32, 44.1, or 48 kHz when digitized from analog source
Channels 2 channels stereo (L/R)
Audio Bit Rates Range from 32 kbps to 256 kbps
Note: Audio codec settings are applied to streaming or files delivered by both encoders.
Scaler High quality multi-tap 10-bit scaler and de-interlacer
Available to both streaming and recording operations
Preview Stream format: H.264
Bitrate: 300 kbps (average)
Stream type: RTSP
Recording Formats MP4 and MOV with two channels of embedded AAC audio (maximum file length of 300 minutes)

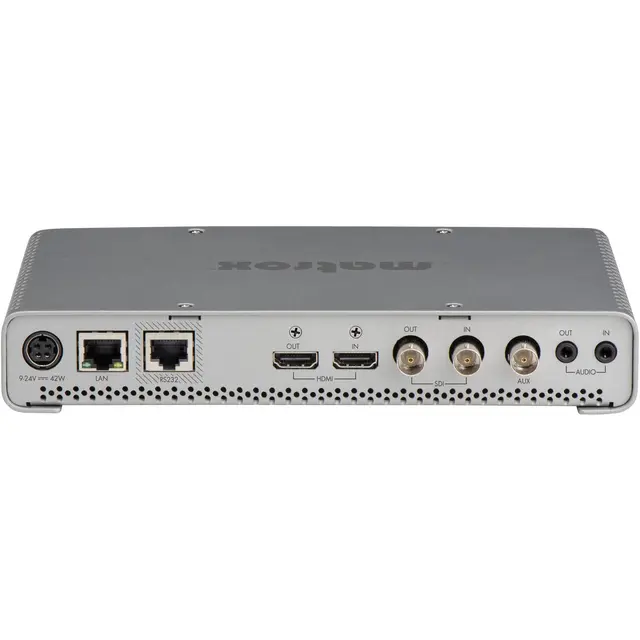

Network Interface RJ45 connector providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing

Protocols:
RTMP, RTSP/RTP
IPv4 support
Unicast and Multi Unicast (from 3 to 10 clients)
User Interface HTTP via standard PC or Mac web browser using Monarch HDX Command Center

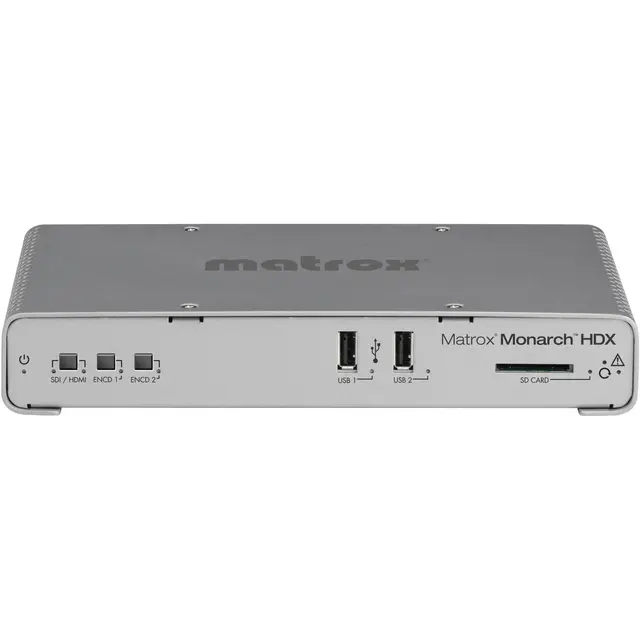

Front panel push buttons for independent streaming and recording Start/Stop control
Recording Media Support 2x USB 2.0:
 Support for NTFS file system
 Monarch HD will support writing to USB 3.0 devices at USB 2.0 speeds

1x SD card slot:
 Supports SD and SDHC cards
 Supports SDXC cards formatted with NTFS

Network mapped drive:
 Support for writing to Shared Folders in computers found on a network using NFS or Windows share protocols

Power Line voltage: 100-240 VAC, 0.5 A
Frequency: 50-60 Hz
Input: external AC/DC adapter -- IEC320-C8
Output: 9 to 24 VDC
Total power consumption: 20 to 30 W typical, 42 W max
DIN4 locking power connector

Dimensions 14.2 x 21.6 x 3.6 cm
15.3 x 21.6 x 3.8 cm (including pads and BNC spigots)
