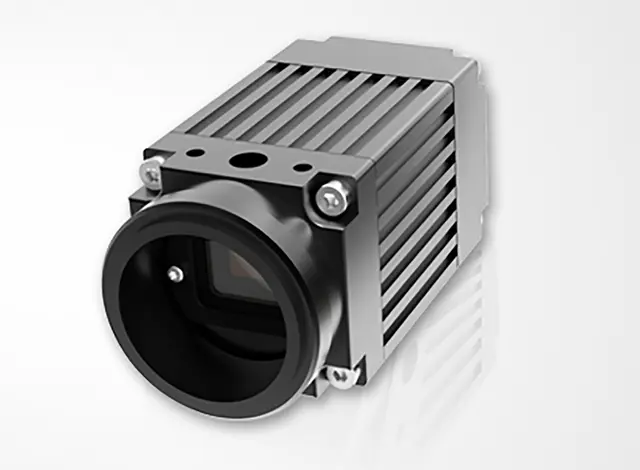

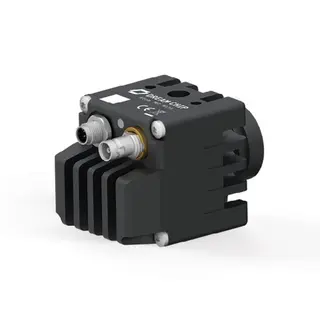

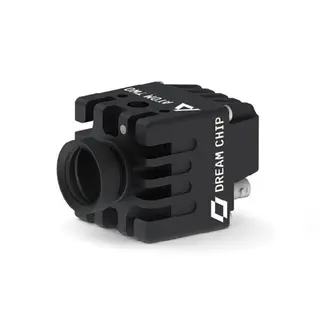

Dreamchip ATOM one Kamerahus

Overview

Resolution Full HD 1920 x 1080
Mount C Mount
Size 32 mm x 32 mm x 71 mm
Weight 100 g
Mount points 2x 1/4 “ 6x M3

Sensor

Sensor Type 1 / 1.23 “
Pixel size 5.86 um
Diameter 13.1 mm
Filter IR cut
Shutter type Global
Dynamic 12 bit / 72 dB
Sensitivity ISO ISO 60-960
Sensitivity 2000 Lx 50Hz F11
Maxium FOV (H) 89° @ 6mm lens

Electric

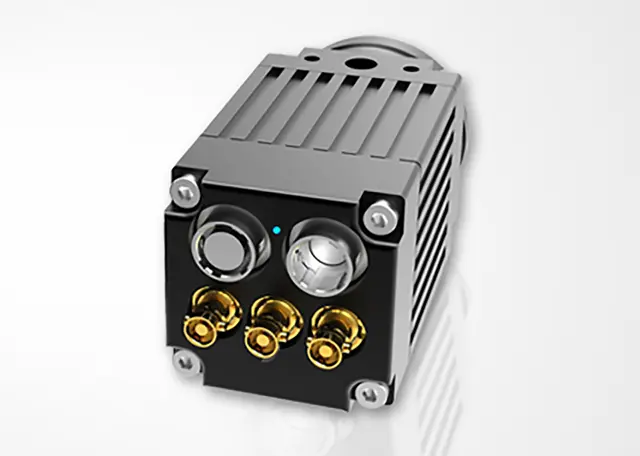

SDI output 2x HD-BNC
Control RS485 / RS422 / UART 3.3V
Genlock Trilevel Sync in / out
Voltage range 6V-36V
Power 3.4W 280mA 12V
Cooling Passive
