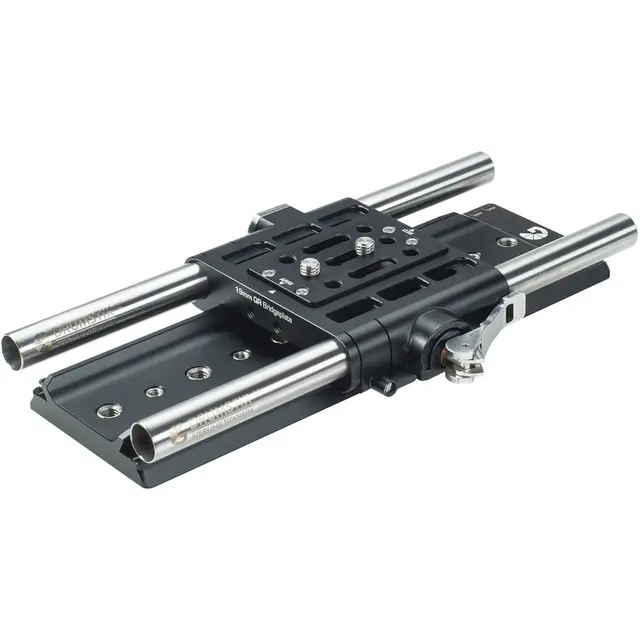

The Left Field 19mm Studio Quick Release Bridgeplate Advanced Kit from Bright Tangerine includes the Left Field 19mm Studio quick release bridgeplate, the Left Field ARRI-standard dovetail plate, and two 12" titanium 19mm rods.

The quick release bridgeplate features 3/8"-16 camera screws, a right-side ARRI-style rosette, and 3/8"-16 accessory threads. It also includes a three-stage Open•UP locking lever and an inner plate that supports the different heights of both ARRI and RED cameras. The ARRI-standard dovetail plate measures 11.8" in length and features multiple 3/8"-16 and 1/4"-20 tripod mounting threads on the bottom. The rods are made from durable, lightweight titanium, and they are resistant to corrosion. Read more below about the items in this kit.

Bright Tangerine Left Field 19mm Studio Bridgeplate with Open•UP Quick Release

The Left Field 19mm Studio Quick Release Bridgeplate from Bright Tangerine features a three-stage Open•UP locking lever. This quick release system enables you to detach the bridgeplate vertically, saving the time and effort otherwise spent sliding your camera rig off the back of a dovetail. The vertical release feature is especially handy for heavier cameras or when switching one camera between multiple supports like a handheld rig, dolly, or tripod.

The Quick Release bridgeplate incorporates an inner plate that can be rotated to accommodate the different heights of both ARRI and RED cameras. This riser adapter can be swapped for separately available plates compatible with additional cameras. Bridgeplate features include 3/8"-16 camera screws, a right-side ARRI-standard rosette, and 3/8"-16 accessory threads.



Bright Tangerine Left Field ARRI Standard Dovetail (11.8")

Quickly mount and remount your camera between a tripod, jib, crane, gimbal, and more with this heavy-duty, 11.8" long Left Field ARRI Standard Dovetail from Bright Tangerine. The anodized aluminum dovetail plate features position markings to keep track while changing lenses or balancing your camera. A front safety stop and rear safety button ensure your camera does not slide off the plate.

The plate features six 3/8"-16 and five 1/4"-20 mounting threads with inserts to prevent stripping. The bottom part of the dovetail is compatible with OConnor 2600, 2575, and 120EX as well as Sachtler Cine 30 tripod heads. The dovetail can also be used with the Left Field 19mm Studio Quick Release Bridgeplate or 15mm LWS Baseplate.

Compatibility

• Jibs, cranes, gimbals, tripods etc. compatible with ARRI standard dovetail
• Left Field 19mm Studio Quick Release Bridgeplate
• Left Field 15mm LWS Baseplate
• OConnor 2600, 2575, and 120EX tripod heads
• Sachtler Cine 30 tripod heads



Bright Tangerine Drumstix 19mm Sterling Titanium Support Rods (12", Pair)

This pair of Bright Tangerine Drumstix 19mm Sterling Titanium Support Rods follows in the Bright Tangerine tradition of relentlessly striving for less weight without sacrificing strength and usefulness. Each 12"-long support rod is extremely lightweight yet exhibits less flex than carbon fiber rods of the same length, and it is lighter than either steel or aluminum rods while being at least as stiff and strong. Made from titanium the rods are corrosion resistant, and each is machined and ground flat to prevent binding as you mount accessories.

Each titanium rod is machined and ground flat to within a tolerance of 2 microns, which prevents accessories from binding when sliding on the rod. The strength, hardness, and machining tolerances of the rod eliminate the need for the time-honored tradition of spinning the support rod in the rod clamp when trying to build the camera package.Each rod is extremely lightweight, making it well suited for use with drones or in handheld configurations.The stiffness of each rod means you can confidently use it to support heavy lenses and matte boxes loaded with filters without worrying about the rod flexing.

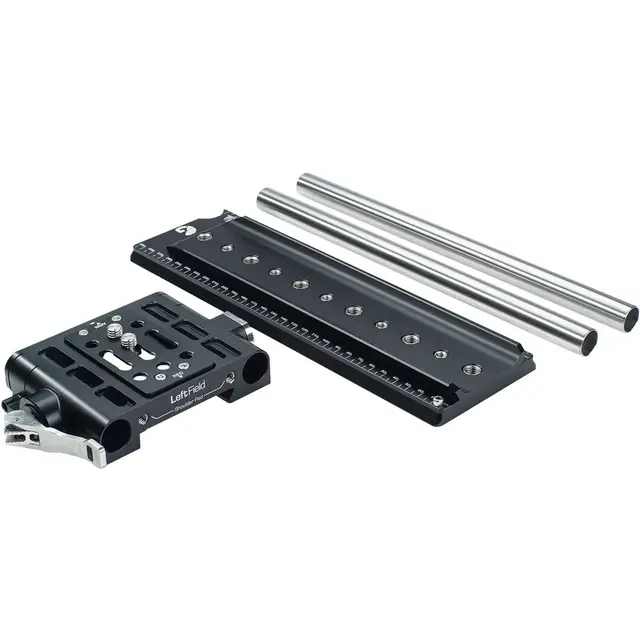

In the Box

• Bright Tangerine Left Field 19mm Studio Bridgeplate with Open•UP Quick Release
• ARRI/RED Riser Adapter
• 4 x Allen Screw (3mm)
• 2 x 3/8"-16 Camera Screw



• Bright Tangerine Left Field ARRI Standard Dovetail (11.8")



• Bright Tangerine Drumstix 19mm Sterling Titanium Support Rods (12", Pair)
