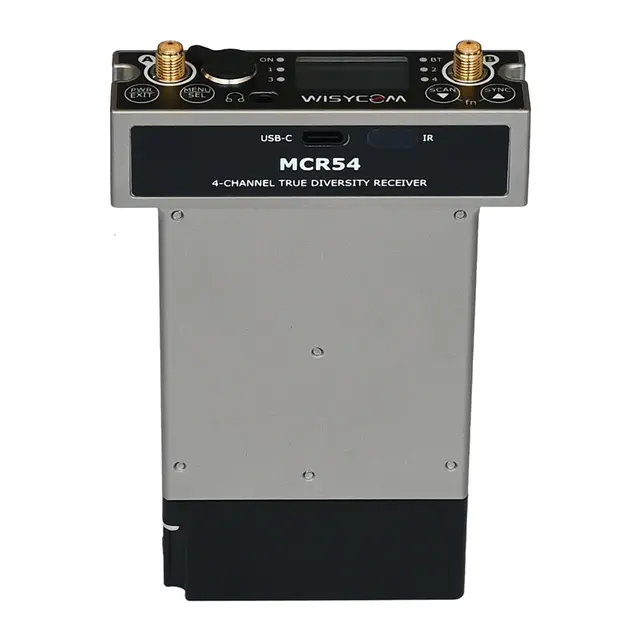

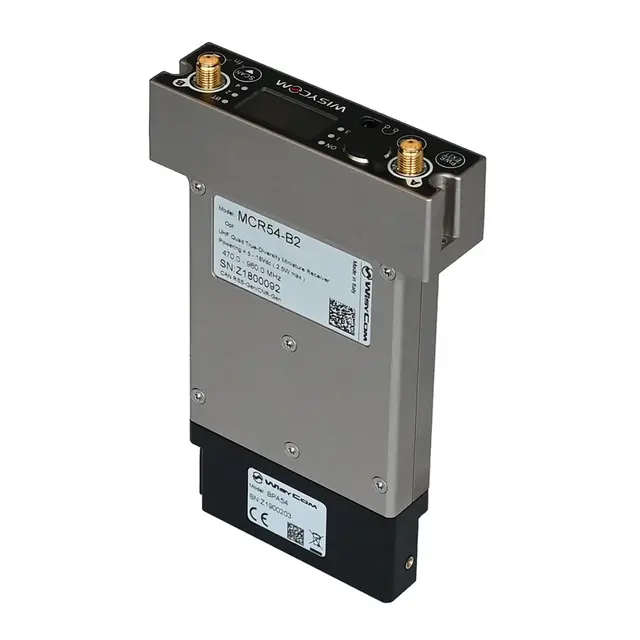

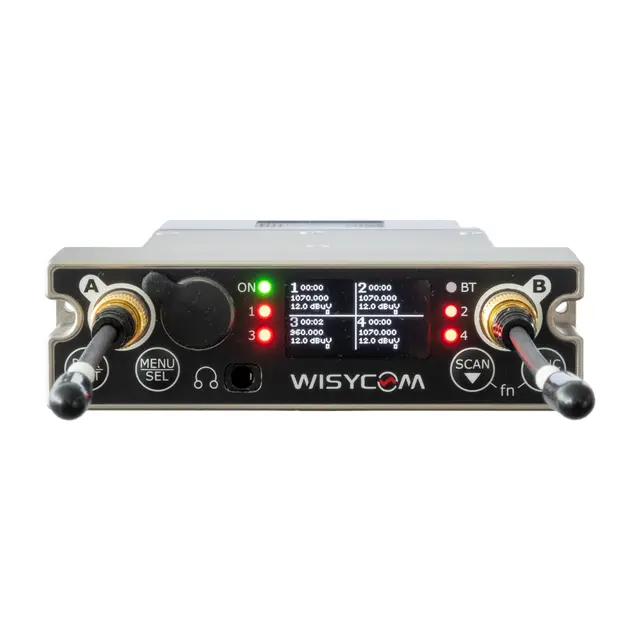

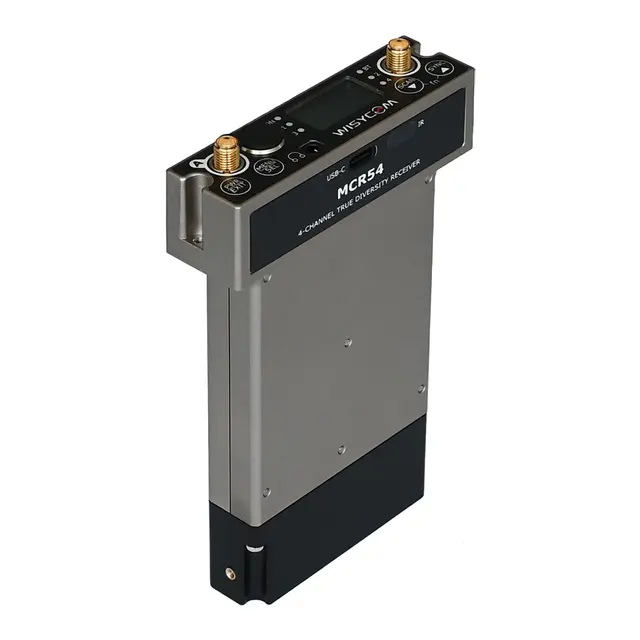

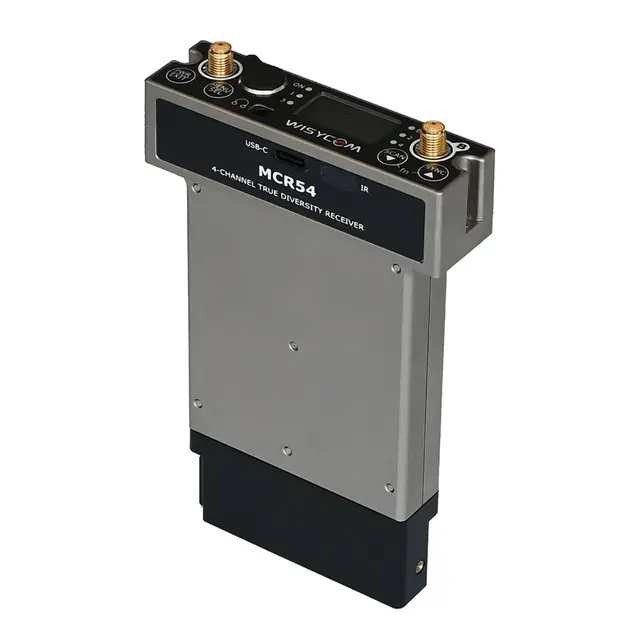

Wisycom MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.
- Four channels True Diversity receiver (8 Receiver boards)
- Exceptional compactness and high robustness
- DSP Analogue & Digital Audio Output (AES3)
- Up to 790 MHz bandwidth in 470/1260 MHz range
- Next Gen Multiband front-end filtering:
High Q electronically tunable filter in 470-798 MHz
1st narrowband filter
2nd narrowband filter - Wideband and Narrowband DSP-FM operation (SW selectable):
Narrowband allows more 50% band efficiency
Narrowband allows about 3dB extra sensitivity and noise immunity - Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
- High contrast OLED display
- Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
- DSP based for extreme flexibility and multi-companding operations
- Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
- Rear antenna connectors and micro audio and power adapter
